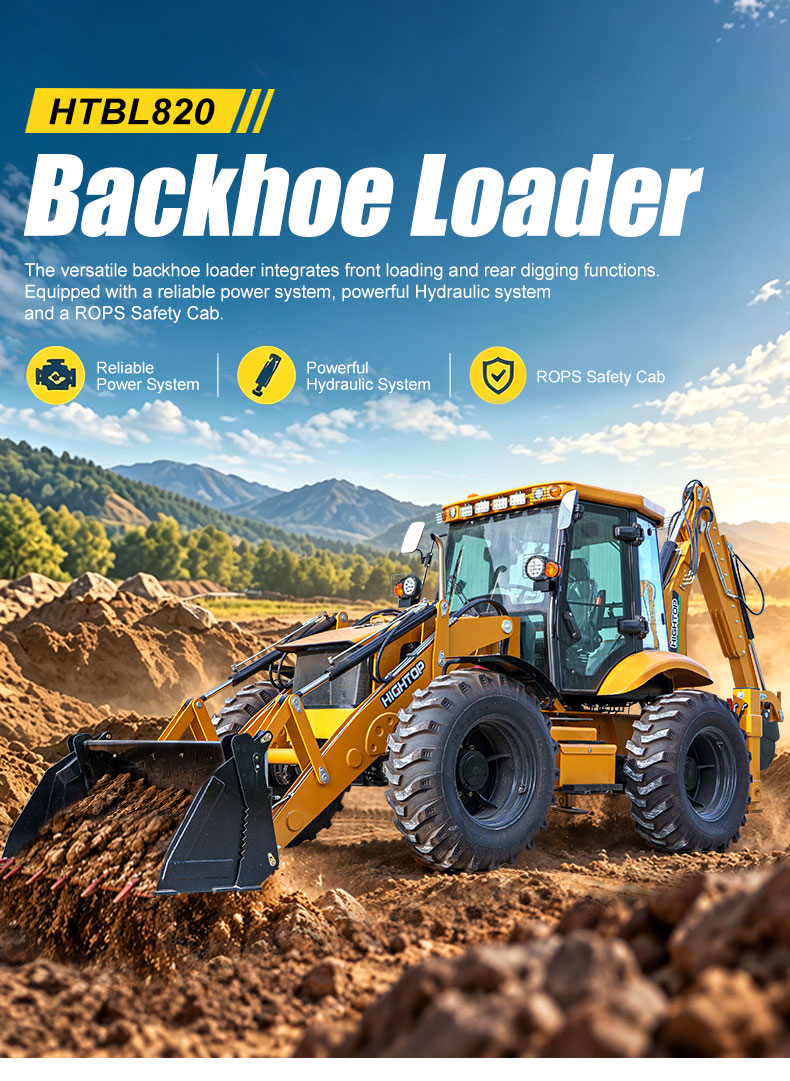

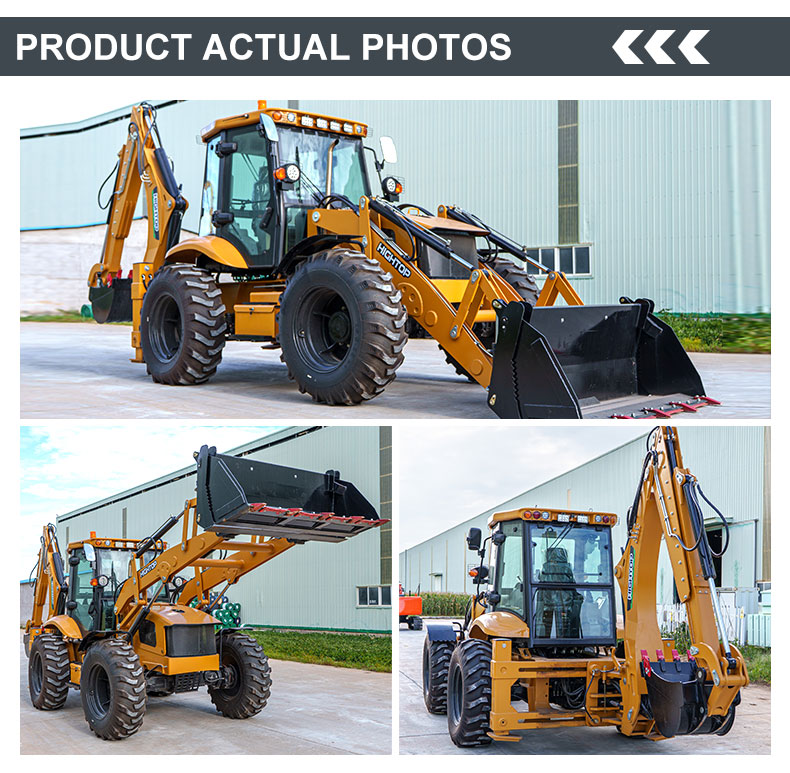

The HTBL820 excavator loader is a versatile dual-purpose machine that performs both front loading and rear digging. It offers a rated loading capacity of 2500 kg and an overall working weight of 10050 kg. The machine features four-wheel drive with four-wheel steering, a mechanical synchronous transmission gearbox, and is equipped with a powerful engine delivering excellent off-road and climbing performance.
|

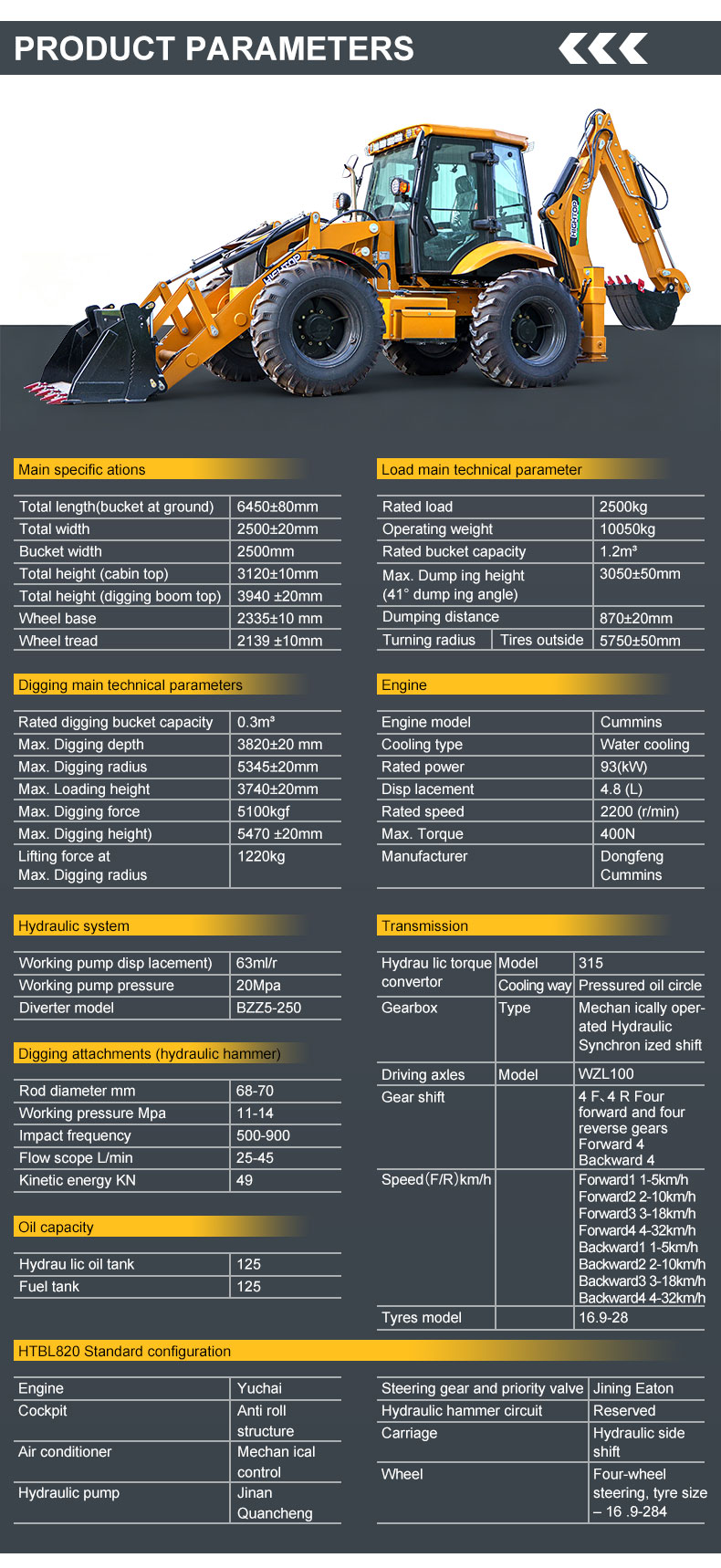

Model |
HTBL820 |
|
Rated Load |
2500 kg |
|
Operating Weight |
10050 kg |
|
Rated Bucket Capacity |
1.2 m3 |
|
Rated Digging Bucket Capacity |
0.3 m3 |
|
Engine |
Yuchai |
|
Rated Power |
93 kW |
|
Displacement |
4.8 L |
|
Rated Speed |
2200 r/min |
|
Max. Torque |
400 N·m |
|
Cooling Type |
Water cooling |
|
Drive Type |

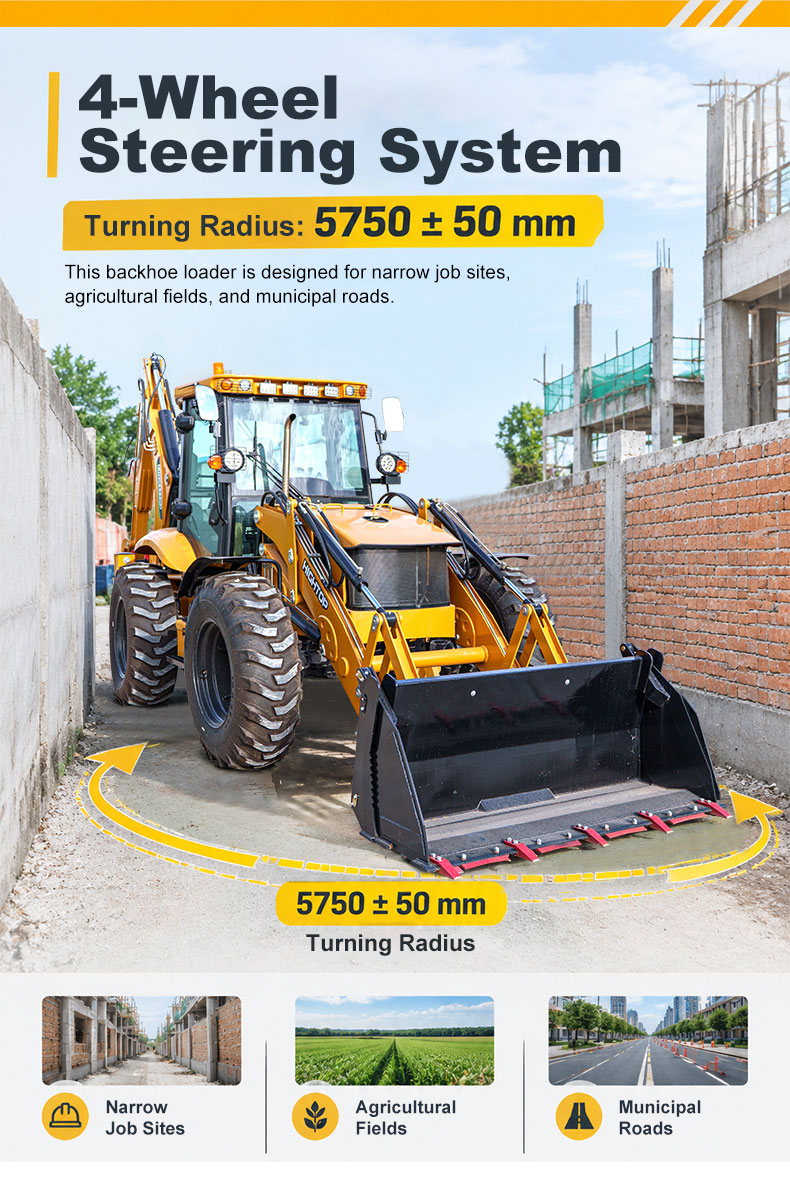

Four-wheel drive, four-wheel steering |
|
Tyre Size |
16.9-28 |
|
Total Length (bucket at ground) |
6450 ± 80 mm |
|
Total Width |
2500 ± 20 mm |
|
Bucket Width |
2500 mm |
|
Total Height (cabinet top) |
3120 ± 10 mm |
|
Total Height (digging boom top) |
3940 ± 20 mm |
|
Wheel Base |
2335 ± 10 mm |
|
Wheel Tread |
2139 ± 10 mm |
|

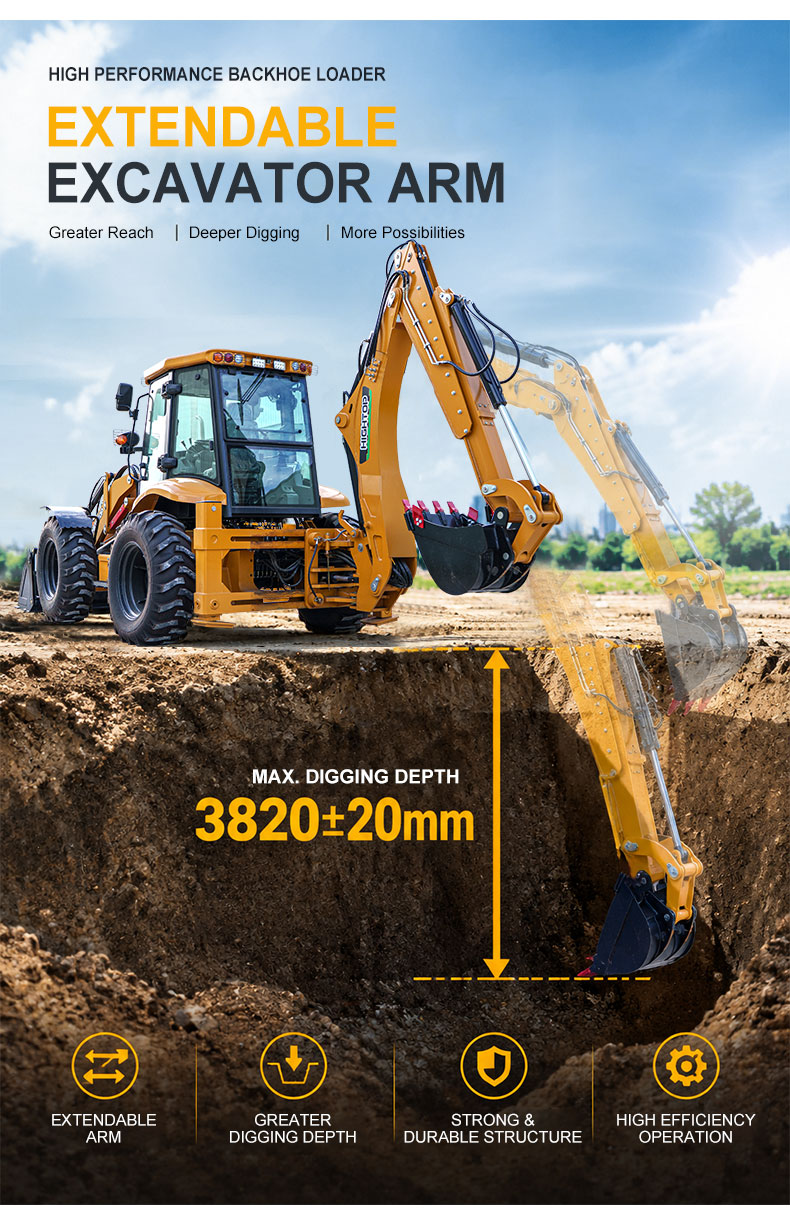

Max. Digging Depth |
3820 + 20 mm |
|
Max. Digging Radius |
5345 ± 20 mm |
|
Max. Digging Height |
5470 ± 20 mm |
|
Max. Digging Force |
5100 kgf |
|

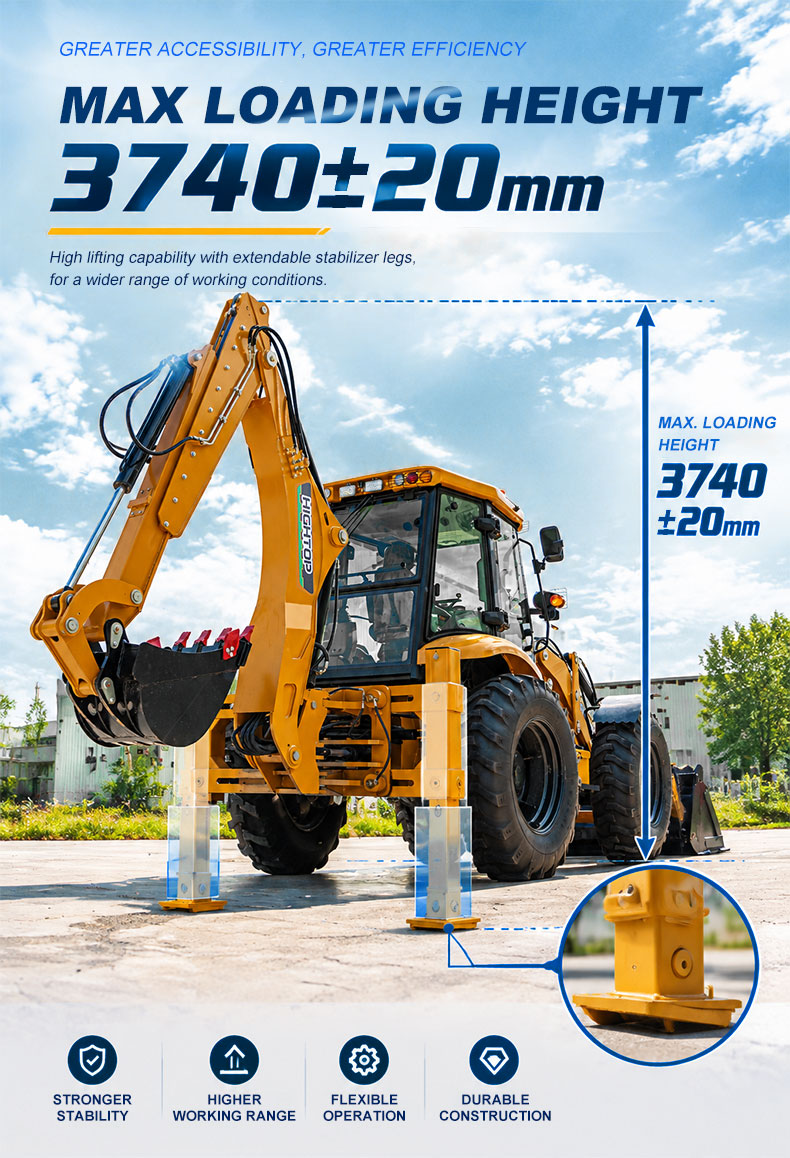

Max. Loading Height |
3740 ± 20 mm |
|
Max. Dumping Height (41° dumping angle) |
3050 ± 50 mm |
|
Lifting Force at Max. Digging Radius |
1220 kg |
|
Hydraulic Pump |
Jinan Quancheng |
|
Working Pump Displacement |
63 ml/r |
|
Working Pump Pressure |
20 MPa |
|
Diverter Model |
BZZ5-250 |
|
Rod Diameter |
68–70 mm |
|
Working Pressure |
11–14 MPa |
|
Impact Frequency |
500–900 |
|
Flow Scope |
25–45 L/min |
|
Kinetic Energy |
49 kN |
|
Hydraulic Oil Tank |
125 L |
|
Fuel Tank |
125 L |
|
Hydraulic Torque Convertor Model |
315 |
|
Torque Convertor Cooling |
Pressured oil circle |
|
Steering Gear & Priority Valve |
Jining Eaton |
|
Hydraulic Hammer Circuit |
Reserved |
|
Gearbox Type |
Mechanically operated hydraulic synchronized shift |
|
Driving Axle Model |
WZL100 |
|
Gear Shift |
4 forward, 4 reverse |
|
Speed (Forward 1 / Reverse 1) |
1–5 km/h |
|
Speed (Forward 2 / Reverse 2) |
2–10 km/h |
|
Speed (Forward 3 / Reverse 3) |
3–18 km/h |
|
Speed (Forward 4 / Reverse 4) |
4–32 km/h |
|
Carriage |
Hydraulic side shift |
|
Wheel Configuration |
Four-wheel steering, tyre size 16.9-28 |
