HT-10C 1T Mini Excavator

Project Information

Project Description

HT-10C 1T Mini Excavator Instruction

High fuel efficiency,super power Saving energy and protecting environment

HT-10C 1T Mini Excavator Parameter

Model

HT-10C

Weight

1000kg

Digging bucket capacity

0.025cbm/120kg

Bucket width

380mm

Engine

KOOP(192F)


Optional Engine

BRIGGS & STRATTON YANMAR

Bore stroke

Single cylinder, fan cool

Rated power

7kw/3000r/min


Main pump

G5-6

Displacement

6.8ml/r

Swing motor

SANYANG (BMRS-250)

Traveling motor

SANYANG (BMT-245)

Travel speed

1.5km/h

Main Demensions



Overall dimension( LxWxH)

2775 x 930 x 2219 mm

Wheelbase

910 mm

Total length of track

1230mm

Platform ground clearance

380 mm

Platform back turming radius

784 mm

Chassis width

896 mm

Track width

180 mm

Chassis ground clearance

132 mm

Track height

320 mm

Operating Range



Max. Digging depth

1650 mm

Max. Vertical digging depth

1375 mm

Max. Digging height

2610 mm

Max. Dumping height

1850 mm

Max. Digging radius on ground

2850 mm

Min. Rolation radus

1330 mm

Max. Upgrade height of bulldozer blade

345mm

Max. Digging depth a bulldozer blade

255mm

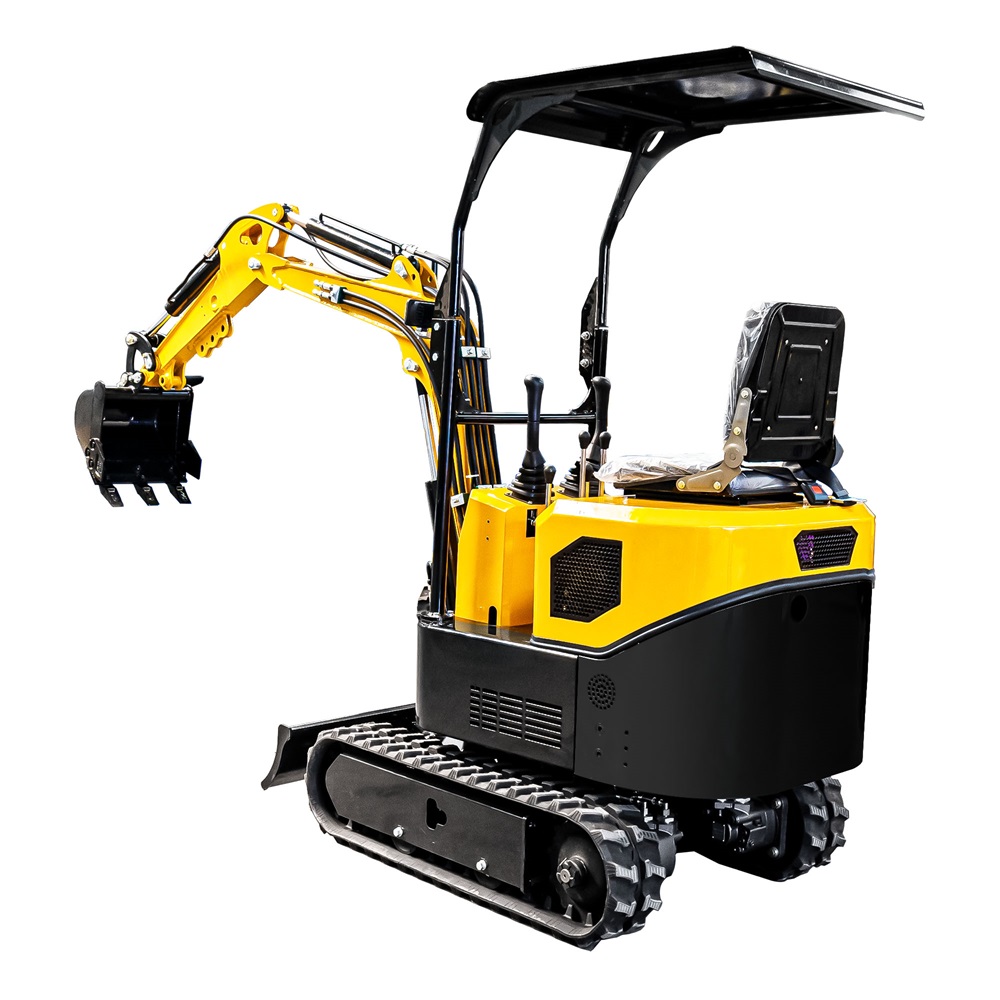

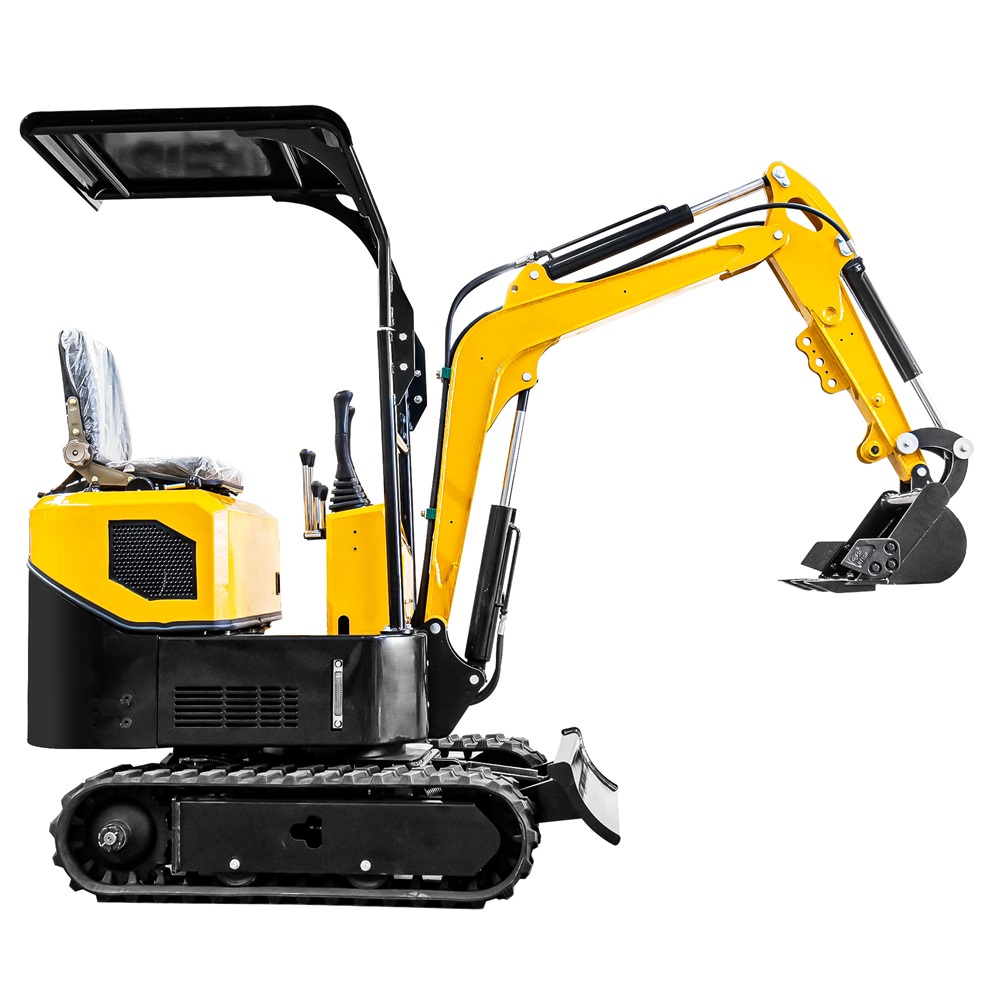

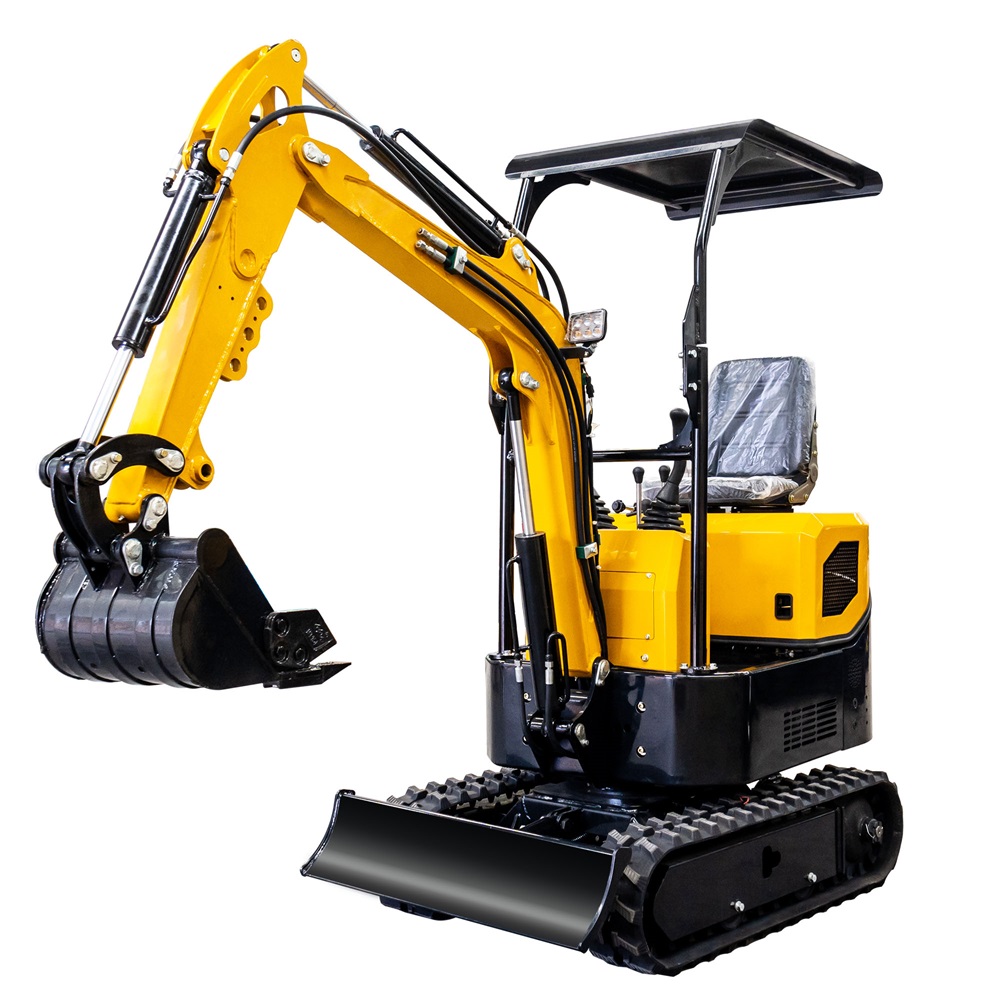

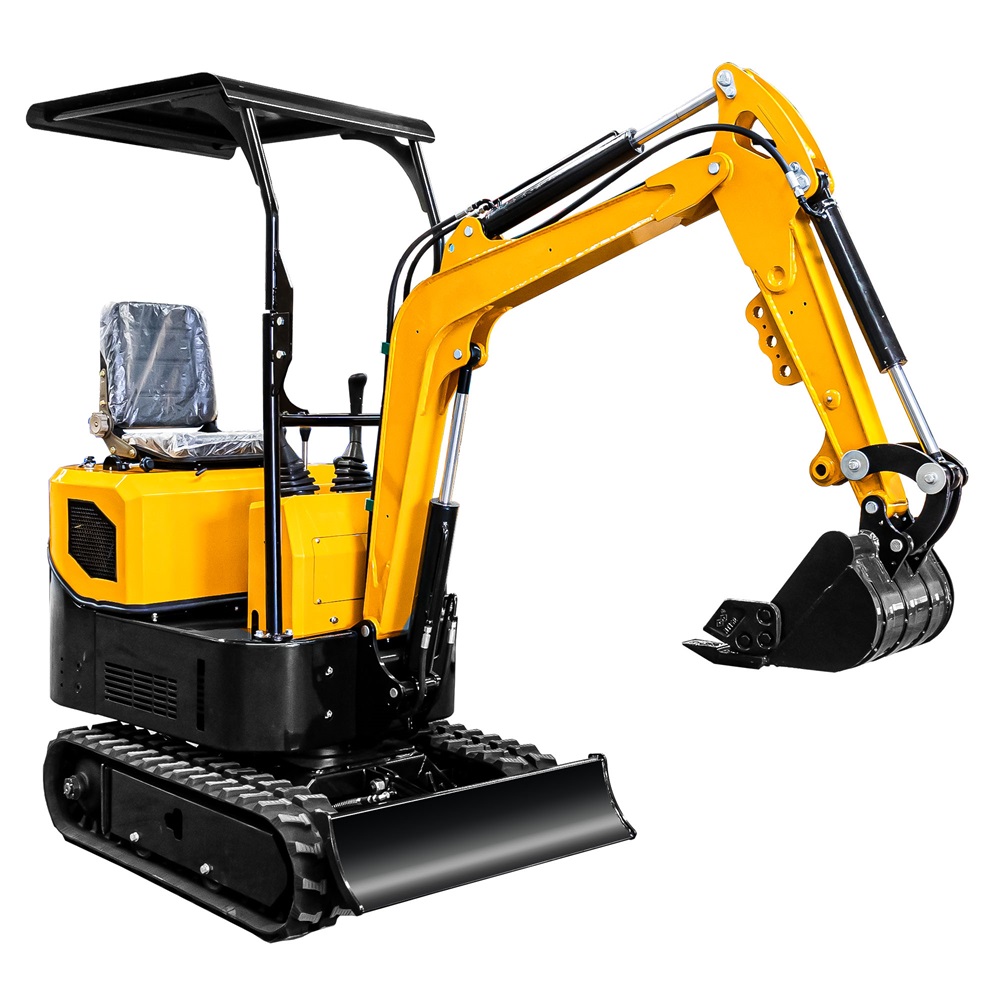

HT-10C 1T Mini Excavator Images
