HTHY380T Crawler skid steer loader

Project Information

Project Description

HTHY380T Crawler skid steer loader Parameter

Max working height

2120mm


Max pin height

1865 mm


Max Dumping height

1405 mm


Max Dumping distance

575mm


Max Dumping Angle

37°


Total height

1350 mm


Ground clearance

121 mm


Wheel base



Overall length without bucket

1495 mm


Total width

1021 mm


Bucket width

1150mm


Total length with bucket

2245 mm


overall length  without the bucket after  folding the pedal.

1990 mm


Engine

RATO R740-1

Briggs&Stration23HP

Rated Power (KW)

16Kw/3600rpm

17Kw/3600rpm

Rotating speed (rpm)

3600

3600

Noise (Db)

≤95

≤95

Hydraulic System



Pressure (Mpa)

0-17

0-17

Flow rate

0-21.6L

0-21.6L

Operating Load

300 Kg

300 Kg

Bucket Capacity

0.15m³

0.15m³

Max Lifting Force

380 Kg

380 Kg

Travel Speed

0-4.5Km/h

0-4.5Km/h

Operating Weight

890 Kg

890 Kg

Oil



Fuel tank

20L

20L

Engine oil

1.7L

1.7L

Hydraulic tank

37L

37L

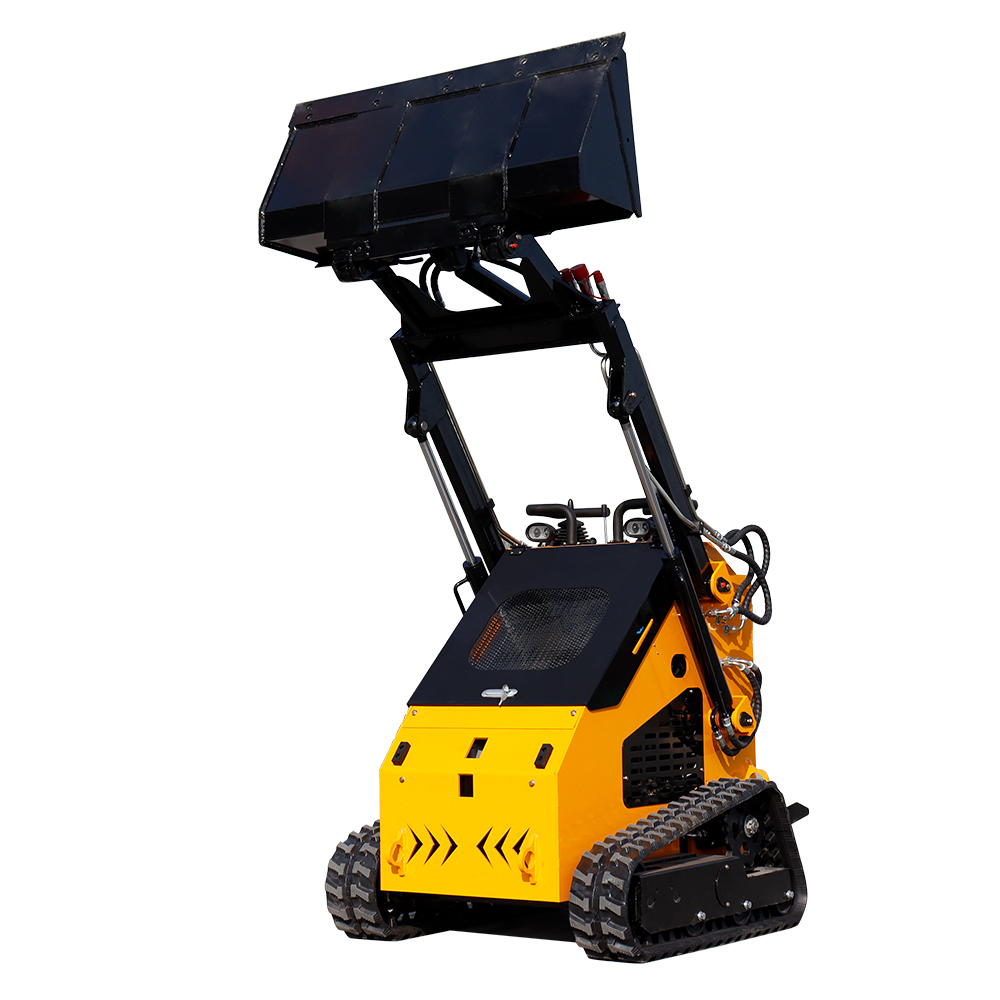

HTHY380T Crawler skid steer loader Images
