HT320T Skid Steer Loader

Project Information

Project Description

HT320T Skid Steer Loader Parameter

Model:HT320T

Max working height

2120mm

Engine

RATO R420

Briggs&Stratton 13.5HP

Max pin height

1865 mm

Rated Power (KW)

9.7Kw/3600rpm

10Kw/3600rpm

Max Dumping height

1405 mm

Rotating speed (rpm)

3600

3600

Max Dumping distance

575mm

Noise (Db)

95

95

Max Dumping Angle

37°

Hydraulic System

Total height

1350 mm

Pressure (Mpa)

0-17

0-17

Ground clearance

121 mm

Flow rate

0-18L

0-21.6L

Wheel base



Operating Load

250 Kg

250Kg

Overall length without bucket

1495 mm

Bucket Capacity

0.15m³

0.15m³

Total width

1021 mm

Max Lifting Force

360 Kg

360 Kg

Bucket width

1080mm

Travel Speed

0-4.5Km/h

0-4.5Km/h

Total length with bucket

2245 mm

Operating Weight

830 Kg

830 Kg

overall length without the bucket after folding the pedal.



1990 mm

Oil

Fuel tank

7L

7L





Engine oil

1.7L

1.7L





Hydraulic tank

37L

37L

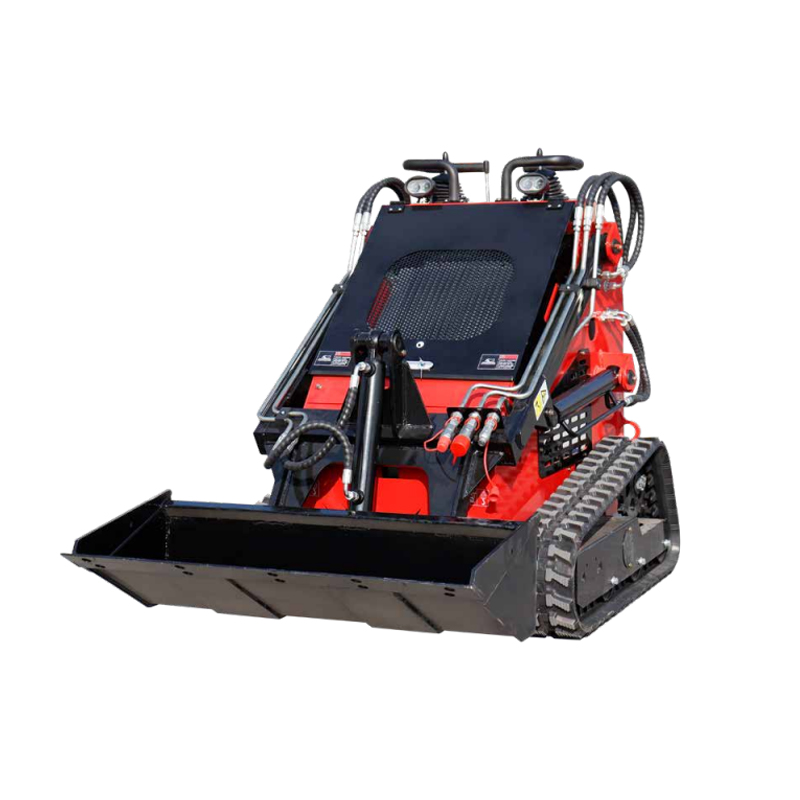

HT320T Skid Steer Loader Images
