HTS380 Skid Steer Loader

Project Information

Project Description

HTS380 Skid Steer Loader Parameter

Model:HTS380

Max working height

2120mm

Engine

RATO R740-1

Briggs & Stratton23HP

Max pin height

1890 mm

Rated Power (KW)

16Kw/3600rpm

17Kw/3600rpm

Max Dumping height

1465 mm

Rotating speed (rpm)

3600

3600

Max Dumping distance

485mm

Noise (Db)

95

95

Max Dumping Angle

32°

Hydraulic System

Total height

1315 mm

Pressure (Mpa)

0-17

0-17

Ground clearance

115mm

Flow rate

0-21.6L

0-21.6L

Wheel base

680

Operating Load

300 Kg

300 Kg

Overall length without bucket

1650 mm

Bucket Capacity

0.15m³

0.15m³

Total width

1120 mm

Max Lifting Force

380 Kg

380 Kg

Bucket width

1150mm

Travel Speed

0-4.5Km/h

0-4.5Km/h

Total length with bucket

2085mm

Operating Weight

800 Kg

800 Kg

overall length without the

bucket after folding the pedal.

2035 mm

Oil

Fuel tank

20L

20L





Engine oil

1.7L

1.7L





Hydraulic tank

37L

37L

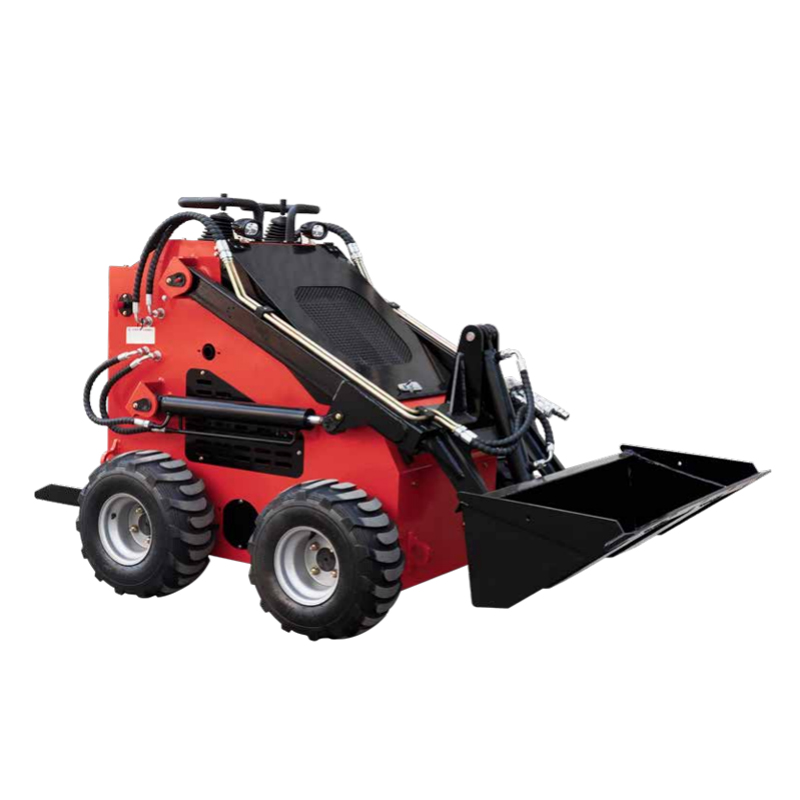

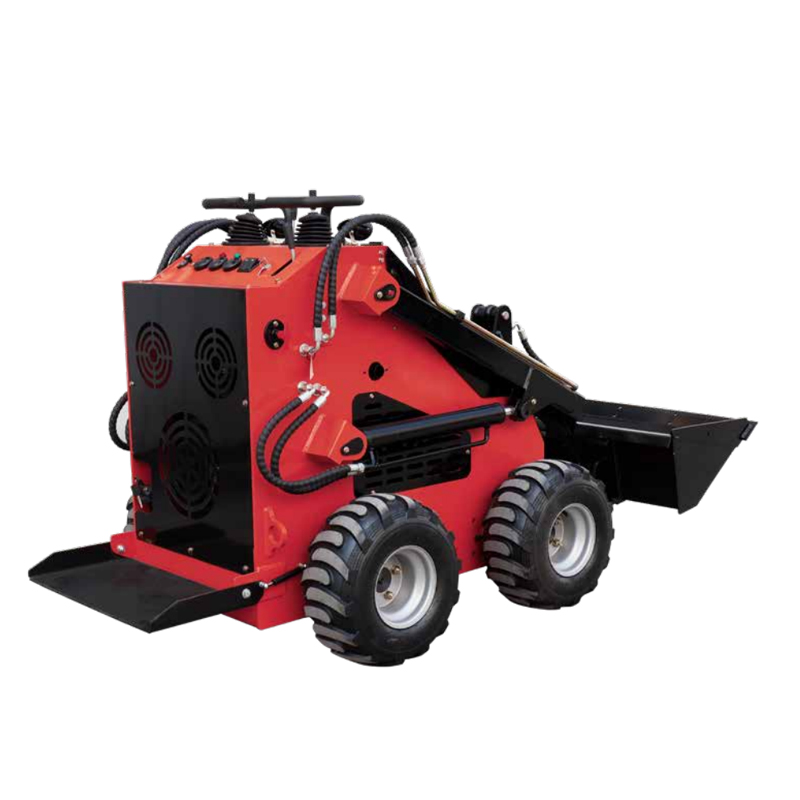

HTS380 Skid Steer Loader Images
